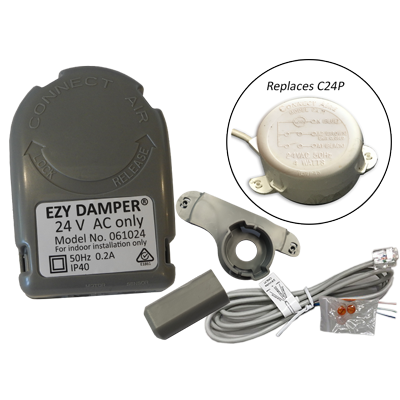

24v EZY DAMPER® ZONE MOTOR KIT (GREY)
Replaces Connect Aire CA71 DO/DC 24v damper motor C24P (White)
This kit includes:
- EZM24 – 24v FAST FIT ZONE DAMPER MOTOR (GREY)
- ZMAP – ZONE MOTOR ADAPTOR PLATE (GREY PPO)
- ZMAS – ZONE MOTOR ADAPTOR SHAFT (GREY PPO)
- EZA – 24v PLUG IN HARD WIRE 1m CONVERSION CABLE
SPECIFICATIONS FOR SYNCHRONOUS MOTOR
| AC Voltage | 24 Volt |
| Insulating Resistance | >100 mW |
| Dielectric Strength | AC360 |
| Speed | 1.6 / 1.9 RPM |
| No Load Current | < 150mA |
| Power Consumption | <4 Watt |
| Output Torque | >8 Kgf.cm |
| Starting Voltage | 20.4 V |
| Noise | < 40db |
| Temperature Rise | < 75 k |
| Rotation | CCW |
